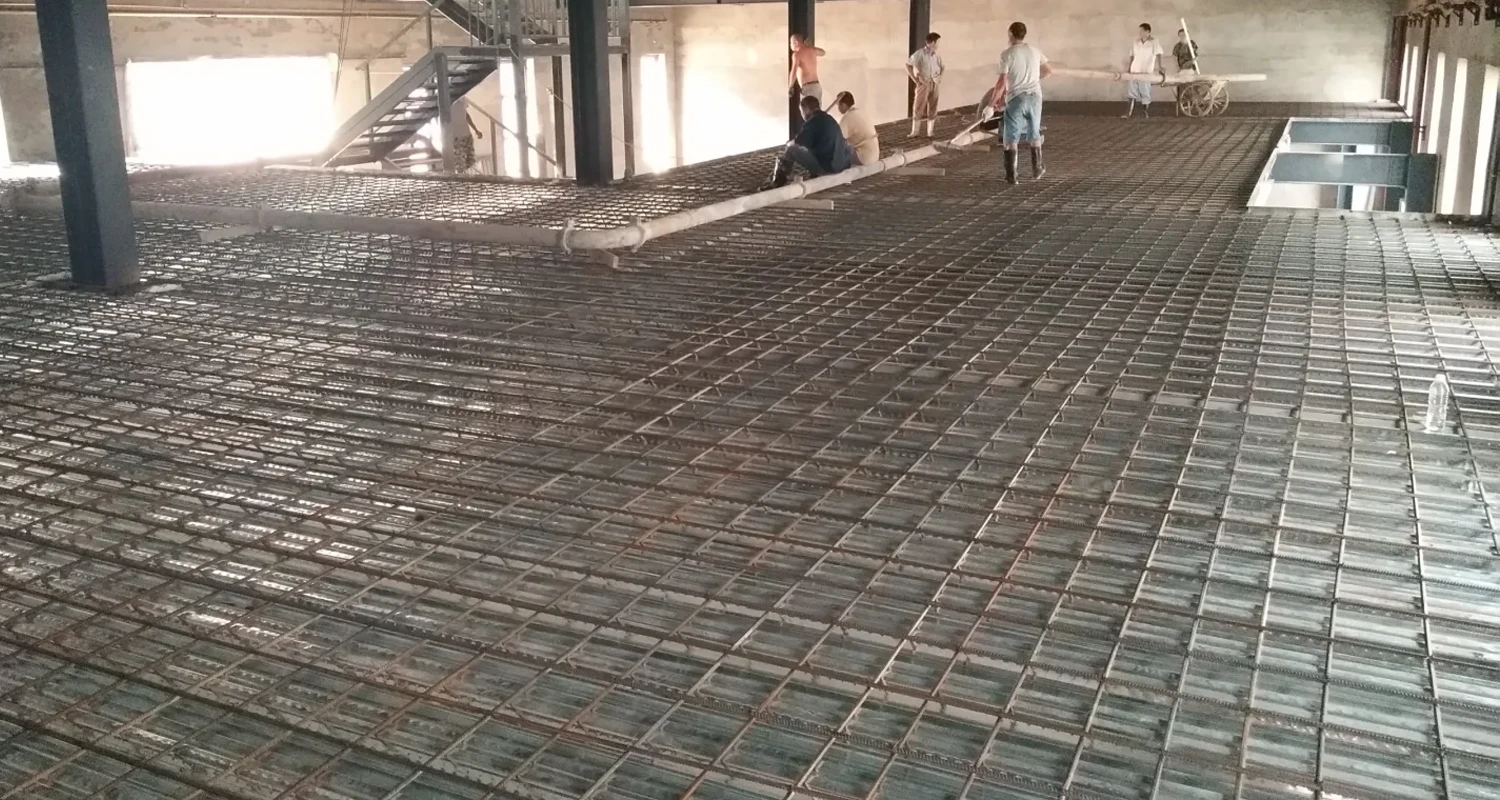

Building. Welded mesh reinforcement is widely used for the reinforcement of concrete structures. In this case, inside poured concrete forms (under the slab, frame foundation slab is poured) laid welded reinforcing mesh, which serves to increase the strength of formed concrete structures.

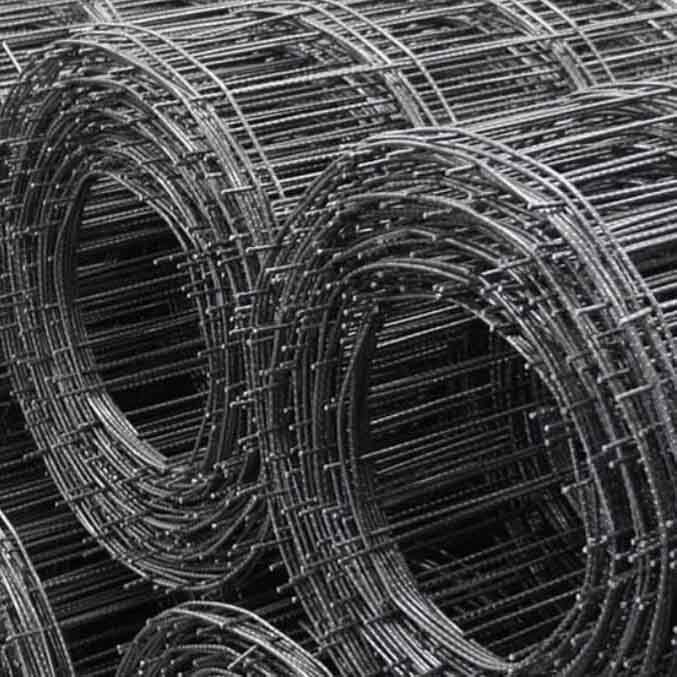

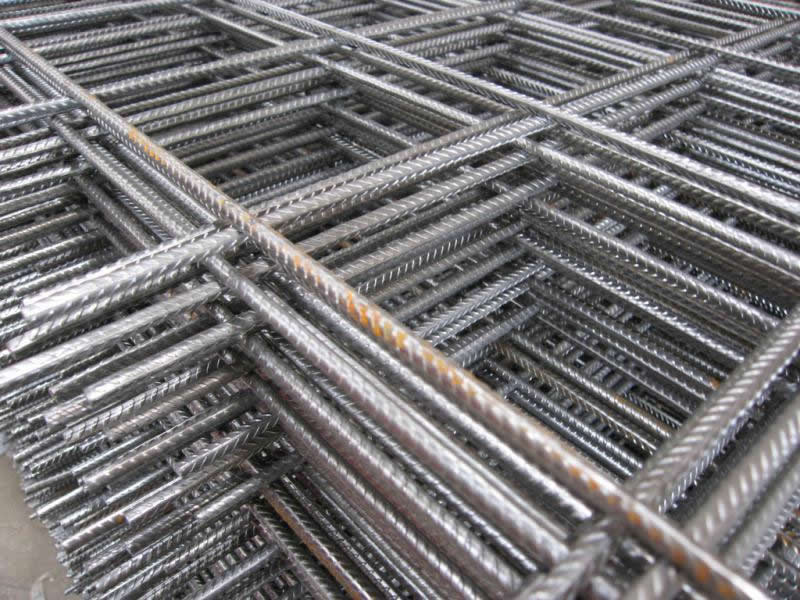

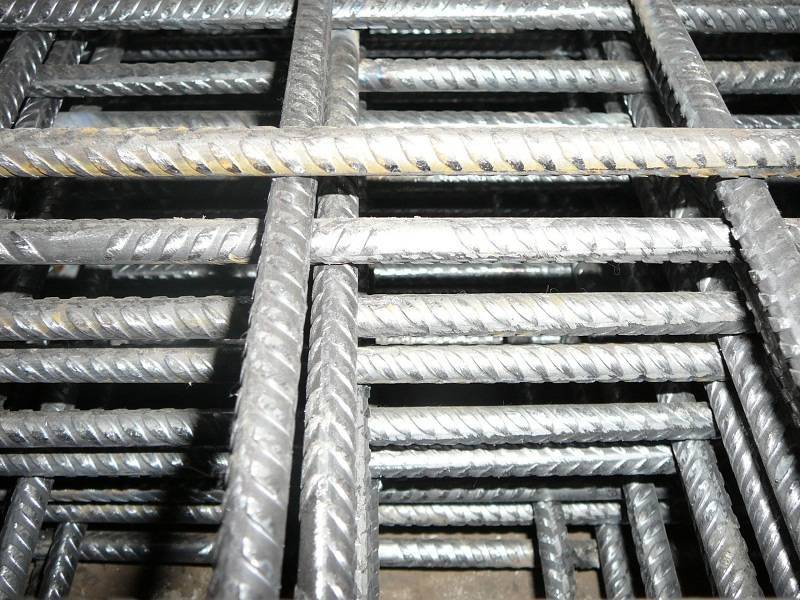

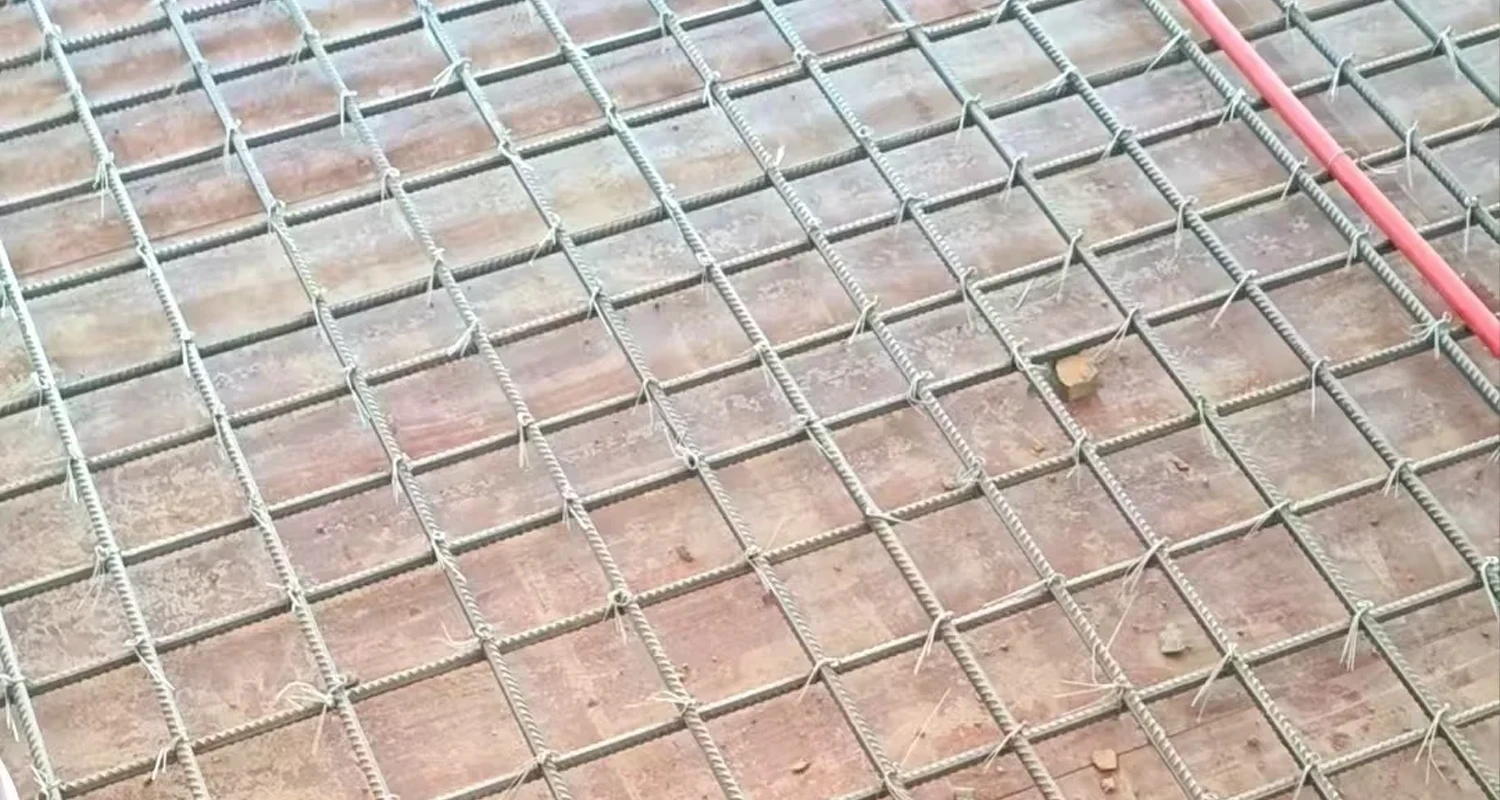

Reinforcing welded wire mesh are made from reinforcing wire, located in two mutually perpendicular directions and connected at the intersection of resistance spot welding.
Welded reinforcement mesh is made by welding, which does not disturb the structure of the metal. It is easier to move and laid in concrete, and reinforcement mesh just holds its shape and mesh.
Specification of welded reinforcing mesh:
|Items||Wire Diameter (mm)||Mesh Opening (mm)||Weight (kg/m2)|
|SU610||6||100 × 100||4.5|
|SU615||6||150 × 150||3.0|
|SU620||6||200 × 200||2.2|
|SU810||8||100 × 100||7.9|
|SU815||8||150 × 150||5.3|
|SU820||8||200 × 200||4.0|
|SU1010||10||100 × 100||12.3|
|SU1015||10||150 × 150||12.4|
|SU1020||10||200 × 200||6.2|
|SU1210||12||100 × 100||17.8|
|SU1215||12||150 × 150||11.9|
|SU1220||12||200 × 200||8.9|
Our company also has the ability to produce reinforcing mesh according to customer drawings.
Application of reinforcing welded wire mesh:
Reinforcing mesh is used to increase the structural strength of reinforced concrete structures and asphalt. The creation of the inner frame reinforcement for concrete structures can provide a high level of performance. Reinforcing mesh is also used for other purposes, such as:
Technical point: as armature construction, welded mesh reinforcement is laid with a slight overlap. Therefore less useful area maps by about 10% than its geometrical dimensions.
