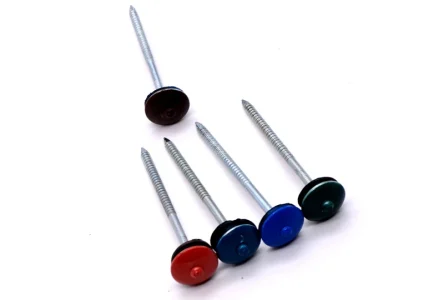

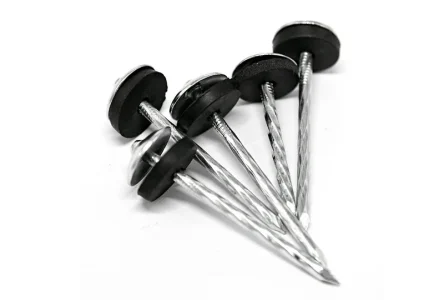

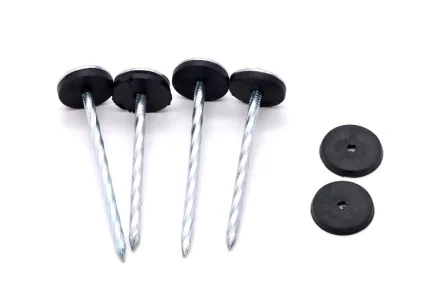

Roofing nails also called umbrella roofing nail. The material is used by high quality Q195 and Q235 steel wire. The Finish can be galvanized, black, yellow, white, and the shank of the roofing nails can be spiral shank, plain shank, groove shank, straight shank, twisted shank.
umbrella roofing nails
umbrella head roofing nails
roofing nails
corrugated nails
umbrella nails
| Materials | Q195,Q235 wire rod or according to request |
| Finish | Electro galvanzied |
| Head | Umbrella head |

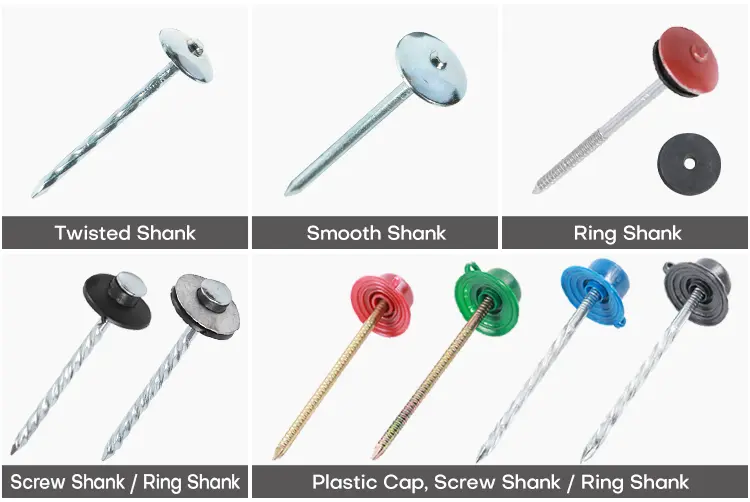

| Shank | Plain shank, Twisted Shank, Screw Shank, Ring Shank |
| Point | Diamond Point |
| Packing | In box ,carton ,case , plastic bags ,etc . |
 |
Galvanized Umbrella Head Roofing Nails
Twisted Shank / Plain Shank |
|||

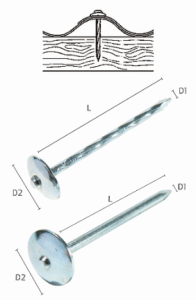

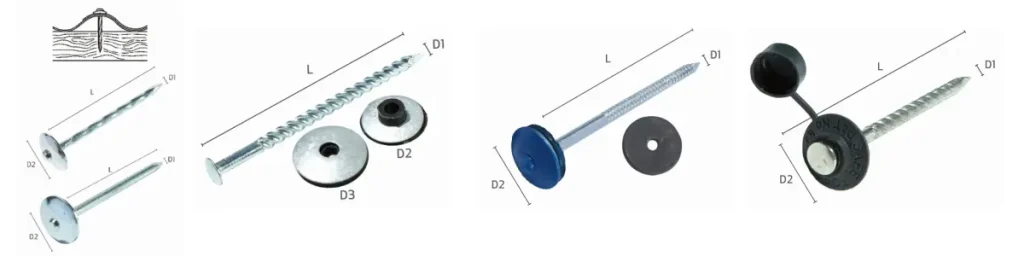

| SIZE | D1(mm) | D2(mm) | L (mm） | |
| 8BWG | 4.2mm | 20 | 2″,2.5″,3″,3.5″,4″ | |
| 9BWG | 3.76mm | 20 | 2″,2.5″,3″,3.5″,4″ | |
| 10BWG | 3.4mm | 20 | 2″,2.5″,3″ | |
| 11BWG | 3.15mm | 18 | 1.5″,2″,2.5″ | |
| 12BWG | 2.8mm | 16 | 1.5″,2″ | |
| 13BWG | 2.4mm | 14 | 1.5″,2″ | |
 |
Galvanized Ring Shank Roofing Nails
With Washer, Umbrella Head |
|||
| SIZE | D1(mm) | D2(mm) | L (mm） | |
| 8BWG | 4.2mm | 20mm | 2″,2.5″,3″,3.5″,4″ | |
| 9BWG | 3.76mm | 20mm | 2″,2.5″,3″,3.5″,4″ | |
 |
Galvanized Screw Shank Roofing Nails
With Washer, Umbrella Head |
|||
| SIZE | D1(mm) | D2/D3(mm) | L (mm） | |
| 7BWG | 4.5mm | 22/24.50mm | 3″,3.5″,4″ | |
| 8BWG | 4.2mm | 22/24.5mm | 3″,3.5″,4″ | |
| 9BWG | 3.76mm | 22/24.50mm | 3″,3.5″,4″ | |
 |
Galvanized Roofing Nails Oval Head
Pastic Cap, Screw Shank / Ring Shank |
|||
| SIZE | D1(mm) | D2(mm) | L (mm） | |
| 8BWG | 4.2mm | 23.5mm | 2″,2.5″,3″,3.5″,4″ | |
| 9BWG | 3.76mm | 23.5mm | 2″,2.5″,3″,3.5″,4″ | |

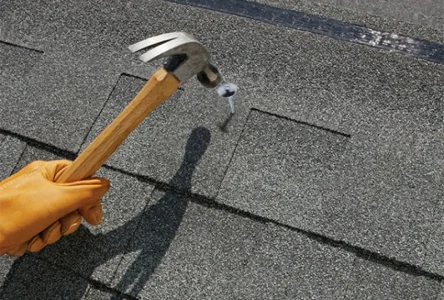

Roofing nails, as its name suggests, are designed for roofing materials installation. These nails, with smooth or twist shanks and umbrella heads, are the most used type of nails with less cost and good property. The umbrella head is designed for preventing the roofing sheets from tearing off around the head of the nail, as well as offering an artistic and decorative effect. The twist shanks and sharp points can hold the wood in position without slipping. We adopt Q195, Q235 carbon steel as material, so as to ensure the nails resistant to extreme weather and corrosion. Besides, rubber or plastic washers are available to prevent water from leaking.
