Razor Wire is also named concertina razor wire, razor fencing wire, razor blade wire or dannert wire. It is a kind of modern security fencing materials with better protection and fencing strength made of hot-dipped galvanized steel sheets or stainless steel sheets. With sharp blades and strong core wire, razor wire has the features of secure fencing, easy installation, age resistance and other properties.

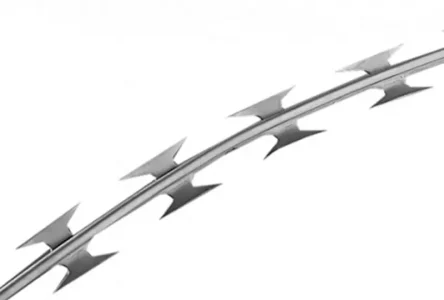

razor barbed wire

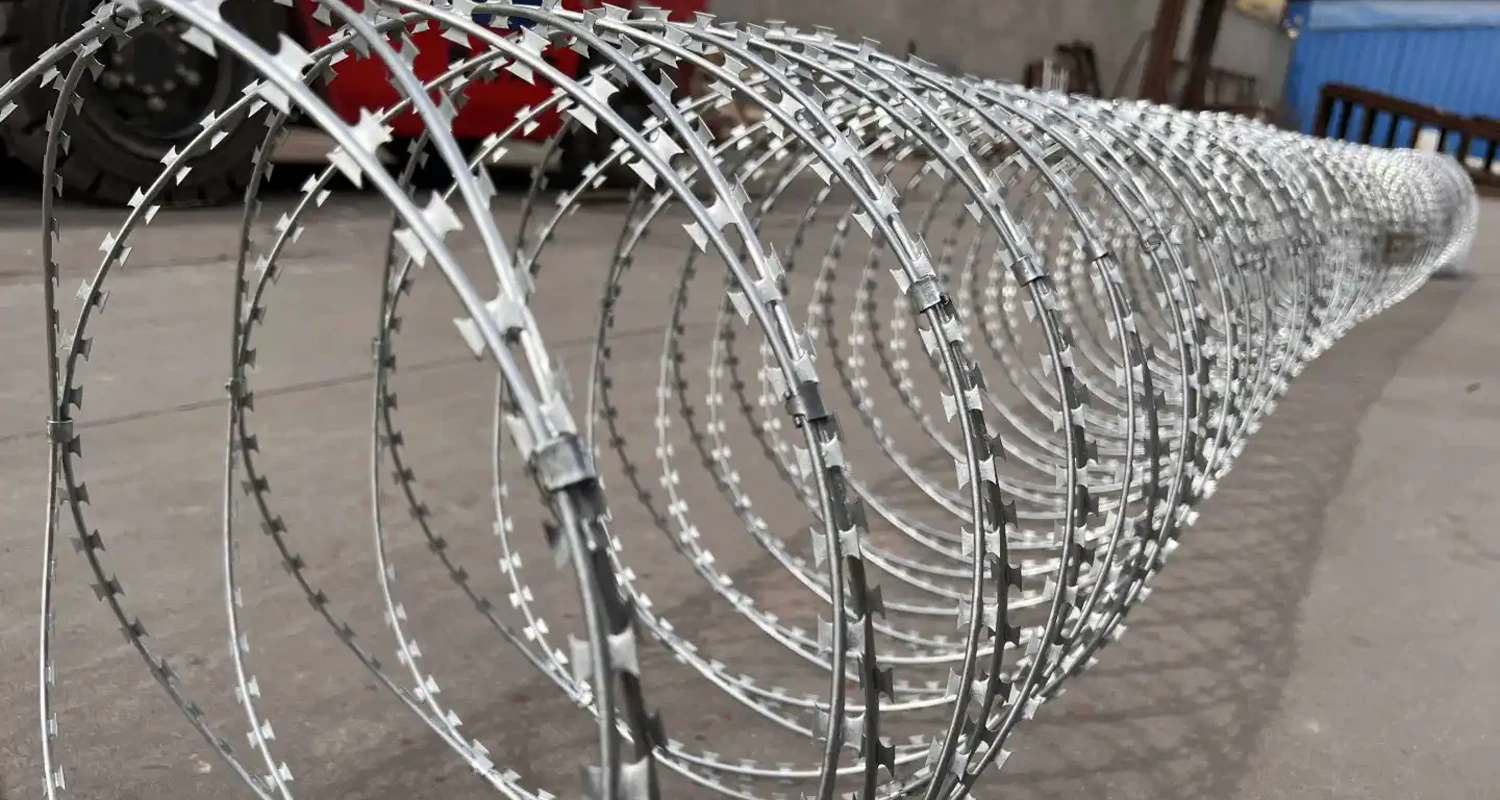

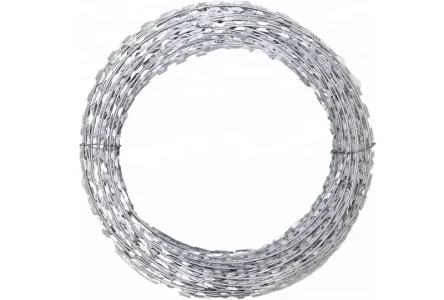

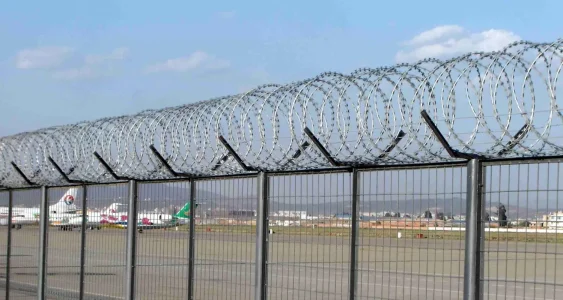

razor wire
Materials | Steel Wire or Iron wire |
Finish | Electro galvanzied, Hot Dipped Galvanized |
Razor Thickness | 0.5-0.6mm |
Wire diameter | 2.5mm |
Barb Length | 10mm-65mm |
Barbed Distance | 26mm-100mm |
![]() |
Razor Wire | |||||
Reference Model | Thickness | Wire Dia | Barb Length | Barb Width | Barb Length | |
BTO-12 | 0.5±0.05 | 2.5±0.1 | 12±1 | 15±1 | 26±1 | |
BTO-22 | 0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 34±1 | |
BTO-28 | 0.5±0.05 | 2.5±0.1 | 28 | 15 | 45±1 | |
BTO-30 | 0.5±0.05 | 2.5±0.1 | 30 | 18 | 45±1 | |
CBT-60 | 0.6±0.05 | 2.5±0.1 | 60±1 | 32±1 | 102±1 | |
CBT-65 | 0.6±0.05 | 2.5±0.1 | 65±1 | 21±1 | 102±1 |
