0.5mm IBR Roof Sheeting Specifications and Applications

Introduction

In modern construction and industrial building projects, roofing materials must meet high standards for durability, weather resistance, cost efficiency, and ease of installation. Among the most widely used roofing materials in commercial and industrial construction is IBR roof sheeting, particularly the 0.5mm thickness specification. Known for its structural strength and long service life, 0.5mm IBR roof sheeting has become a preferred solution for warehouses, factories, agricultural buildings, commercial complexes, and residential roofing systems.

IBR roof sheets are characterized by their trapezoidal profile design, which enhances load-bearing capacity and water drainage performance. The 0.5mm thickness provides an excellent balance between strength and weight, making it suitable for large-span roofing systems without excessive structural reinforcement.

In this comprehensive guide, we will explore the technical specifications, manufacturing process, performance advantages, common applications, installation methods, and purchasing considerations of 0.5mm IBR roof sheeting. Whether you are a contractor, builder, architect, or construction materials importer, understanding these details will help you choose the right roofing solution for your project.

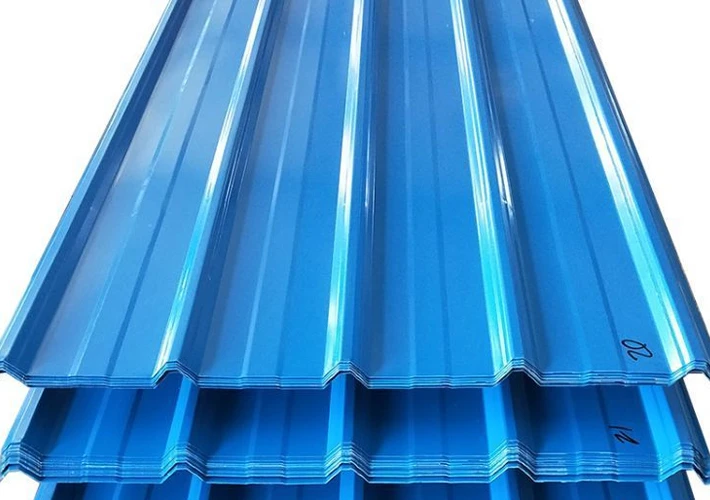

What Is 0.5mm IBR Roof Sheeting?

IBR roof sheeting refers to Inverted Box Rib roofing sheets, a type of metal roofing profile widely used in commercial and industrial construction. The design features deep ribs and flat pans, creating a strong structural shape that improves load distribution and water runoff.

The 0.5mm thickness refers to the base metal thickness (BMT) of the steel sheet before coating. This thickness offers excellent structural integrity while remaining lightweight enough for efficient transportation and installation.

Key Structural Characteristics

Typical IBR roof sheet profiles include:

• Effective cover width: 686 mm – 1000 mm (varies by manufacturer)
• Pitch distance: around 170 mm – 200 mm
• Rib height: approximately 30 mm – 38 mm
• Material thickness: 0.5 mm
• Sheet length: customizable, often from 1 m to 12 m

The trapezoidal rib structure increases bending strength and allows the sheet to span longer distances between purlins.

Common Materials Used

Most 0.5mm IBR roof sheets are produced using the following materials:

1. Galvanized Steel (GI)
Steel coated with zinc to prevent corrosion.

2. Galvalume Steel (GL)
Steel coated with aluminum-zinc alloy, offering better corrosion resistance.

3. Pre-painted Galvanized Steel (PPGI)
Color-coated galvanized steel used for decorative and protective purposes.

4. Pre-painted Galvalume Steel (PPGL)
Color-coated galvalume steel combining durability and aesthetic appeal.

Among these options, PPGL and PPGI IBR sheets are the most commonly used in roofing projects due to their corrosion resistance and wide color options.

Technical Specifications of 0.5mm IBR Roof Sheeting

Understanding the technical specifications of 0.5mm IBR roof sheeting is essential for engineers and contractors when designing roofing systems.

Material Specifications

Typical material parameters include:

Higher zinc coating levels provide stronger corrosion resistance, making them suitable for coastal or humid environments.

Physical Dimensions

Common dimensions include:

• Total width: 900 mm – 1100 mm
• Effective width: 686 mm – 1000 mm
• Rib height: 30–38 mm
• Pitch spacing: approximately 171 mm
• Length tolerance: ±5 mm

Most manufacturers provide custom sheet lengths to reduce on-site cutting and installation waste.

Mechanical Properties

0.5mm IBR roof sheets typically offer:

• High tensile strength: up to 550 MPa
• Excellent load-bearing capacity
• Wind resistance
• Thermal stability

These properties make them ideal for large roofing structures.

Manufacturing Process of 0.5mm IBR Roof Sheets

The production of IBR roof sheeting involves several advanced manufacturing steps to ensure product quality and consistency.

1. Steel Coil Selection

The process begins with selecting high-quality galvanized or galvalume steel coils. The steel must meet required standards in terms of thickness tolerance, coating weight, and mechanical strength.

2. Surface Coating

If color-coated roofing sheets are required, the steel coil undergoes a continuous coil coating process, which includes:

• Surface cleaning
• Chemical pretreatment
• Primer coating
• Topcoat painting
• High-temperature curing

This process improves corrosion resistance and provides decorative color finishes.

3. Roll Forming

The coated steel coil is fed into a roll forming machine that shapes the flat sheet into the trapezoidal IBR profile through multiple forming rollers.

This step ensures:

• Consistent rib geometry
• Accurate dimensions
• Smooth surface finish

4. Cutting and Quality Inspection

The formed sheets are cut to custom lengths using automatic cutting systems. Each sheet undergoes strict quality inspection to ensure:

• Accurate thickness
• Uniform coating
• Smooth edges
• No surface defects

5. Packaging and Shipping

Finished sheets are stacked and packaged carefully to prevent damage during transportation.

Advantages of 0.5mm IBR Roof Sheeting

0.5mm IBR roof sheets are widely used because they offer several performance advantages compared with traditional roofing materials.

High Structural Strength

The trapezoidal rib design significantly increases the sheet’s load-bearing capacity. This allows longer spans between support structures, reducing construction costs.

Excellent Weather Resistance

Galvanized and galvalume coatings protect the steel core from corrosion, ensuring long-term durability even in harsh climates.

Lightweight Construction

Despite their strength, 0.5mm IBR sheets remain relatively lightweight, reducing the structural load on buildings and simplifying installation.

Cost Efficiency

Compared with thicker roofing sheets, 0.5mm sheets offer a cost-effective balance between performance and material cost.

This makes them especially attractive for:

• Industrial warehouses
• Agricultural buildings
• Commercial facilities

Fast Installation

IBR roofing sheets are easy to install due to their modular design. Contractors can cover large roof areas quickly, reducing labor costs and project timelines.

Attractive Appearance

Color-coated IBR sheets are available in a wide range of colors, allowing architects to match roofing with building aesthetics.

Common color options include:

• RAL 3003 red
• RAL 5012 blue
• RAL 7016 grey
• RAL 9002 white

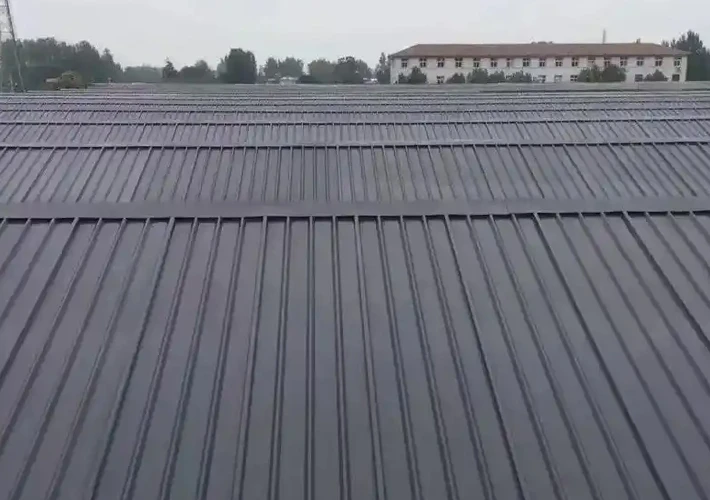

Common Applications of 0.5mm IBR Roof Sheeting

Due to their durability and versatility, 0.5mm IBR roof sheets are widely used across multiple industries.

Industrial Buildings

Factories and manufacturing plants require durable roofing systems that can withstand heavy loads and environmental exposure.

IBR roof sheets provide:

• Strong structural support
• Large-span coverage
• Long service life

Warehouses and Logistics Centers

Large warehouses often use metal roofing because it offers quick installation and low maintenance.

0.5mm IBR sheets help reduce construction costs while maintaining high structural reliability.

Commercial Buildings

Shopping centers, office complexes, and retail buildings frequently use IBR roofing due to its modern appearance and weather resistance.

Agricultural Structures

Agricultural buildings such as:

• barns
• storage sheds
• livestock shelters

benefit from the corrosion resistance and ventilation compatibility of metal roofing systems.

Residential Housing

In many regions, IBR roof sheets are also used for residential houses, especially in modern or prefabricated home designs.

Carports and Outdoor Structures

IBR roofing is ideal for:

• carports
• patio covers
• outdoor storage areas

because it provides strong protection against rain and sun.

Installation Guidelines for 0.5mm IBR Roof Sheeting

Proper installation is essential to ensure the long-term performance of IBR roofing systems.

Roof Structure Preparation

Before installing the sheets, the supporting structure must be properly aligned. Common support systems include:

• steel purlins
• timber battens

The spacing between purlins typically ranges from 1.0 m to 1.5 m, depending on the load requirements.

Sheet Overlapping

IBR roof sheets are installed with side lap and end lap overlaps to prevent water leakage.

Typical overlap recommendations:

• Side lap: 1 rib
• End lap: 150 mm – 250 mm

Fastening Methods

Roof sheets are usually secured using self-drilling screws with rubber washers.

Fastening should be applied:

• at the crest of the rib
• along purlin lines

Proper tightening ensures waterproof sealing without damaging the sheet surface.

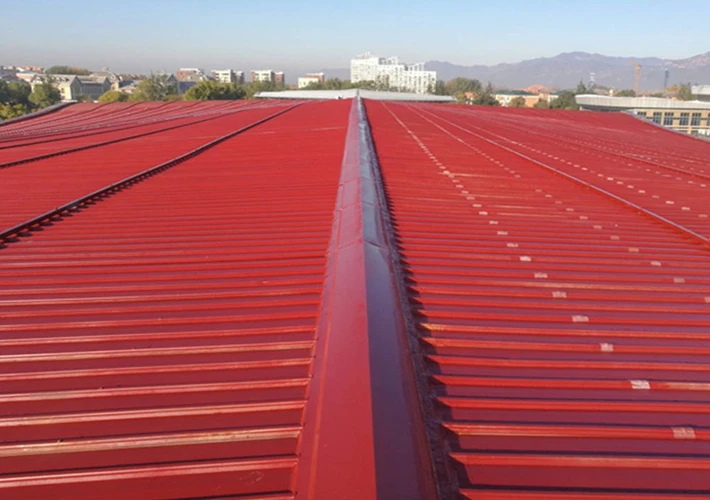

Waterproofing Considerations

Additional waterproofing measures may include:

• sealing tape at overlaps
• flashing around roof edges
• ridge caps and gutter systems

These components improve the overall roof system performance.

Factors to Consider When Purchasing 0.5mm IBR Roof Sheets

When sourcing IBR roof sheets for construction projects, buyers should evaluate several key factors.

Steel Quality

The base steel quality directly affects the strength and durability of the roofing sheets.

Common steel grades include:

• G350
• G550

Higher grades provide better structural performance.

Coating Thickness

Coating weight determines corrosion resistance.

Typical options include:

• Z80
• Z120
• Z275

For coastal environments, higher coating levels are recommended.

Paint Quality

High-quality paint systems improve UV resistance and color stability.

Premium coatings include:

• PE (polyester)
• SMP (silicone modified polyester)
• PVDF coatings

Manufacturer Experience

Choosing an experienced manufacturer ensures consistent quality, accurate dimensions, and reliable supply capacity.

Customization Options

Many projects require customized sheet lengths, colors, and coating specifications. A reliable supplier should provide flexible production capabilities.

Maintenance and Lifespan of 0.5mm IBR Roof Sheeting

With proper installation and maintenance, 0.5mm IBR roofing sheets can last 20–40 years depending on environmental conditions.

Maintenance Tips

Regular maintenance includes:

• removing debris from roof surfaces
• checking fasteners and seals
• inspecting for scratches or coating damage

Minor damages should be repaired promptly to prevent corrosion.

Lifespan Factors

The service life of metal roofing depends on:

• coating thickness
• environmental conditions
• installation quality
• maintenance practices

High-quality galvalume roofing sheets generally offer longer durability.

Conclusion

0.5mm IBR roof sheeting has become one of the most widely used roofing solutions in modern construction due to its strength, durability, cost efficiency, and versatile applications. The trapezoidal rib design enhances structural performance, while protective coatings ensure long-term resistance against corrosion and harsh weather conditions.

From industrial factories and warehouses to commercial buildings and residential housing, 0.5mm IBR roofing sheets provide a reliable and economical roofing system that meets the demands of contemporary construction projects.

When selecting IBR roof sheets, it is important to evaluate factors such as steel grade, coating thickness, paint quality, and supplier reliability to ensure the best performance and value.

If you are planning a roofing project or sourcing metal roofing materials for wholesale distribution, partnering with an experienced manufacturer can help you obtain high-quality products that meet international standards and project requirements.
