The difference between hot-dip galvanized coil and aluminum coil

Date

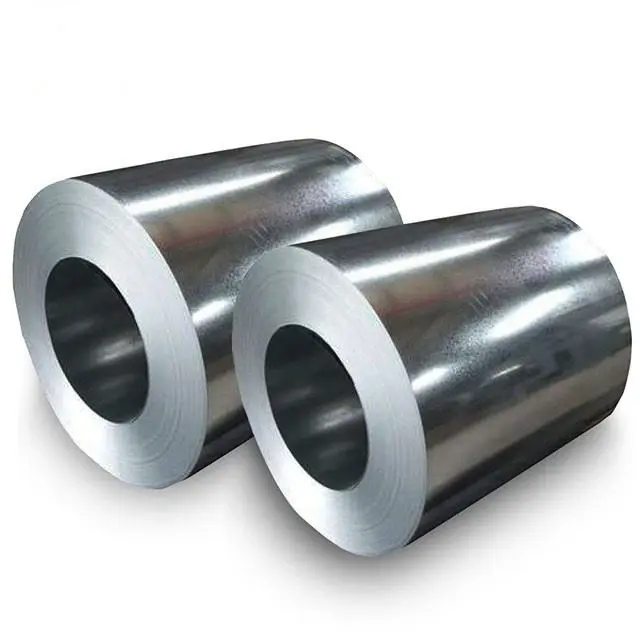

A hot-dip galvanized coil refers to a steel coil that has undergone a process known as hot-dip galvanizing. This process involves coating the steel coil with a layer of zinc to provide corrosion resistance and other protective properties. Here’s an overview of the hot-dip galvanizing process and the characteristics of hot-dip galvanized coils:

Hot-Dip Galvanizing Process:

  1. Surface Preparation: The steel coil is first cleaned to remove any rust, oil, or other contaminants. This step is crucial for ensuring proper adhesion of the zinc coating.
  2. Fluxing: The cleaned steel is then immersed in a flux solution to further clean the surface and facilitate the galvanizing reaction.
  3. Galvanizing: The prepared steel coil is dipped into a bath of molten zinc at temperatures typically around 450°C (850°F). The zinc reacts with the steel surface to form a series of zinc-iron alloy layers (the galvanized coating).
  4. Quenching: After galvanizing, the coated steel is quickly immersed in a quenching bath or water to cool it rapidly.
  5. Finishing: The galvanized steel coil may undergo further processes, such as passivation or chromating, to improve its appearance, enhance corrosion resistance, or provide a specific surface finish.

Characteristics of Hot-Dip Galvanized Coils:

  1. Corrosion Resistance: The primary purpose of hot-dip galvanizing is to provide corrosion protection to the underlying steel. The zinc coating acts as a sacrificial layer, corroding preferentially to protect the steel.
  2. Durability: Hot-dip galvanized coatings are known for their durability and long-lasting protection against rust and other environmental factors.
  3. Outdoor Use: Hot-dip galvanized coils are widely used in outdoor applications, such as construction, automotive, and infrastructure, where exposure to the elements is a concern.
  4. Formability: Hot-dip galvanized steel retains its formability, allowing it to be shaped and fabricated into various products and components.
  5. Cost-Effective: Hot-dip galvanizing is a cost-effective method for providing corrosion protection to steel, especially when compared to other coating methods.
  6. Aesthetic Appearance: While the natural appearance of hot-dip galvanized steel is metallic and somewhat reflective, it is often used for its functional properties rather than aesthetic considerations.

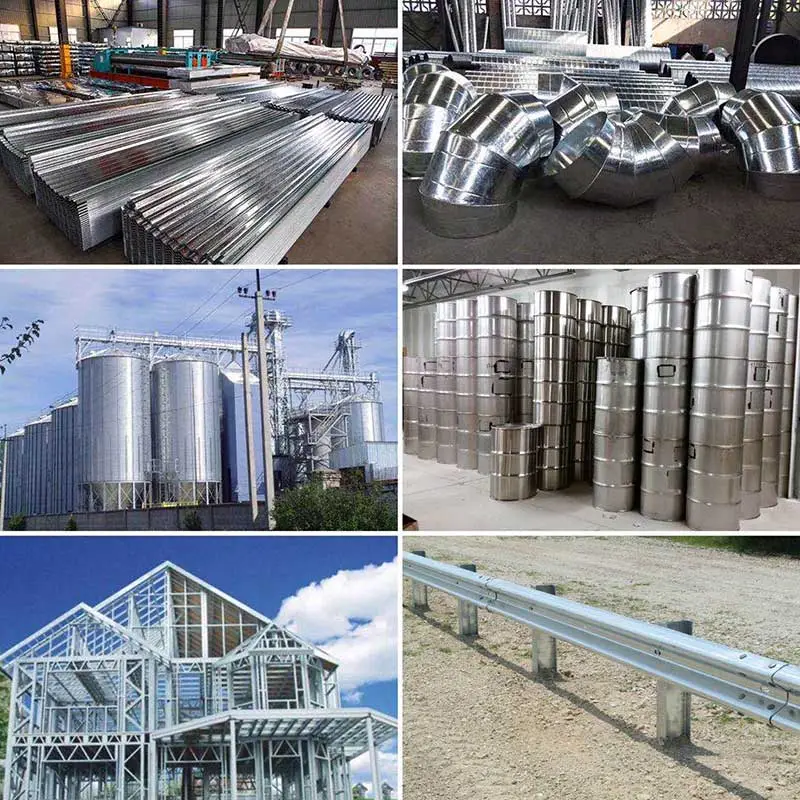

Hot-dip galvanized coils find applications in a wide range of industries, including construction, transportation, agriculture, and manufacturing, where the combination of strength, corrosion resistance, and cost-effectiveness is essential.

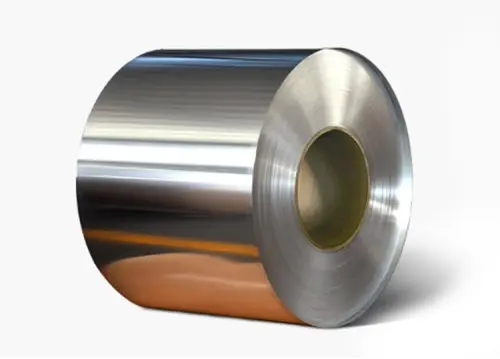

An aluminum coil refers to a coiled sheet or strip of aluminum that is typically used in various industries for a wide range of applications. The aluminum coil is produced through a rolling process where a continuous strip of aluminum is passed through a series of rollers to achieve the desired thickness and dimensions. Here are some key characteristics and applications of aluminum coils:

Characteristics of Aluminum Coils:

  1. Lightweight: Aluminum is a lightweight metal, making aluminum coils suitable for applications where weight is a critical factor, such as in the aerospace industry and automotive manufacturing.
  2. Corrosion Resistance: Aluminum naturally forms a thin oxide layer on its surface, providing inherent corrosion resistance. This makes aluminum coils well-suited for outdoor applications and environments with high humidity.
  3. High Strength-to-Weight Ratio: Despite its light weight, aluminum has a high strength-to-weight ratio, providing structural integrity in various applications without adding significant mass.
  4. Formability: Aluminum is highly formable and can be easily shaped and molded without sacrificing its structural properties. This makes aluminum coils versatile for different fabrication processes.
  5. Conductivity: Aluminum is an excellent conductor of heat and electricity. As a result, aluminum coils are used in applications where thermal conductivity or electrical conductivity is important, such as in heat exchangers or electrical components.
  6. Recyclability: Aluminum is highly recyclable, and recycled aluminum retains its properties. This makes aluminum coils an environmentally friendly choice, and the recycling process consumes significantly less energy compared to the production of primary aluminum.

Applications of Aluminum Coils:

  1. Construction: Aluminum coils are used in the construction industry for roofing, cladding, and facades due to their lightweight nature and corrosion resistance.
  2. Transportation: Aluminum coils are widely used in the automotive and aerospace industries for manufacturing vehicle components, body panels, and aircraft structures.
  3. Packaging: Aluminum coils are used in the production of aluminum cans and packaging materials due to their malleability, light weight, and ability to preserve the contents.
  4. Electronics: Aluminum coils are used in the production of various electronic components, including heat sinks, capacitor foils, and electrical conductors.
  5. HVAC (Heating, Ventilation, and Air Conditioning): Aluminum coils are employed in the manufacturing of heat exchangers and coils for HVAC systems due to their thermal conductivity and corrosion resistance.
  6. General Manufacturing: Aluminum coils find applications in various manufacturing processes for products ranging from household items to industrial equipment.

Overall, the versatility, lightweight nature, and corrosion resistance of aluminum make it a popular choice in many industries, and aluminum coils play a crucial role in the fabrication of a wide range of products.

Hot-dip galvanized coil and aluminum coil are two different types of coated metal products used in various industries for different applications. Here are the key differences between them:

  1. Base Material:
    • Hot-Dip Galvanized Coil: It is typically made from steel. The steel coil undergoes a hot-dip galvanizing process, where it is immersed in a bath of molten zinc to create a protective zinc coating on the surface.
    • Aluminum Coil: It is made from aluminum, a non-ferrous metal. The aluminum coil is coated with various substances to enhance its properties.
  2. Coating Material:
    • Hot-Dip Galvanized Coil: The coating material is zinc. The zinc coating provides excellent corrosion resistance to the underlying steel, protecting it from rust and other environmental factors.
    • Aluminum Coil: The coating material can vary. Common coatings include polyester, polyurethane, fluorocarbon (PVDF), or anodized finishes. These coatings offer corrosion resistance, durability, and aesthetic options.
  3. Corrosion Resistance:
    • Hot-Dip Galvanized Coil: Zinc provides effective corrosion protection, making hot-dip galvanized steel resistant to rust and other forms of corrosion. It is particularly suitable for outdoor applications.
    • Aluminum Coil: Aluminum naturally forms a thin oxide layer on its surface, providing corrosion resistance. Additional coatings enhance this property, making aluminum suitable for various environments.
  4. Weight:
    • Hot-Dip Galvanized Coil: Steel is denser and heavier than aluminum, so hot-dip galvanized steel coils are generally heavier compared to aluminum coils.
    • Aluminum Coil: Aluminum is lightweight, making aluminum coils a preferred choice in applications where weight is a critical factor.
  5. Aesthetic Options:
    • Hot-Dip Galvanized Coil: Typically has a metallic appearance due to the zinc coating. While it provides a classic look, color options are limited.
    • Aluminum Coil: Offers a wide range of color options and finishes, including metallic, matte, and textured surfaces, providing more design flexibility.
  6. Formability:
    • Hot-Dip Galvanized Coil: Steel is known for its strength and formability. Hot-dip galvanized steel can be easily formed into various shapes.
    • Aluminum Coil: Aluminum is highly formable and can be shaped into intricate designs without sacrificing its structural integrity.

In summary, the choice between hot-dip galvanized coil and aluminum coil depends on the specific requirements of the application, including factors such as corrosion resistance, weight considerations, aesthetics, and formability. Each material has its advantages and is suited for different use cases.
