IBR Roof Sheeting Coating Types: Galvanized, Color Coated and Aluzinc Options

Introduction: Understanding IBR Roof Sheeting Coating Options

IBR roof sheeting is one of the most widely used roofing solutions for industrial buildings, warehouses, commercial facilities, agricultural structures, and residential projects. Known for its strong rib profile, excellent water drainage performance, and easy installation, IBR roofing sheets have become a preferred choice for contractors, builders, and importers worldwide.

However, the performance and service life of IBR roof sheets depend not only on the steel thickness and profile design but also on the surface coating technology. The right coating can significantly improve corrosion resistance, weather durability, appearance, and maintenance requirements.

For international buyers sourcing IBR roof sheeting from China, understanding different coating options is essential. The three most common types include:

• Galvanized IBR Roof Sheeting
• Color Coated IBR Roof Sheeting
• Aluzinc (Galvalume) IBR Roof Sheeting

Each coating type has different advantages, applications, and cost considerations.

As a professional roofing material manufacturer in China, Roofglory supplies high-quality IBR roof sheeting with customized thicknesses, coating options, colors, and specifications for global construction projects. With factory production capabilities and export experience, we provide reliable roofing solutions for wholesalers, distributors, and contractors.

What Is IBR Roof Sheeting?

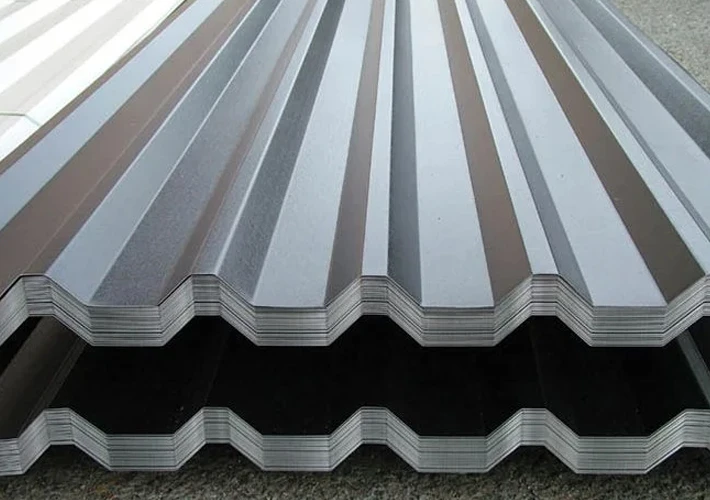

IBR (Inverted Box Rib) roof sheeting is a trapezoidal-shaped metal roofing profile designed to provide excellent structural strength and efficient water drainage. The raised ribs increase the load-bearing capacity of the sheet while reducing the risk of water leakage.

IBR sheets are usually manufactured from:

• Galvanized steel
• Aluzinc steel
• Color coated steel
• Pre-painted galvanized steel (PPGI)
• Galvalume steel (PPGL)

The sheets are commonly produced using cold roll forming technology, which creates a precise rib structure without damaging the protective coating.

Typical specifications include:

IBR roof sheets are widely used in:

• Industrial warehouses
• Steel structure buildings
• Agricultural sheds
• Commercial buildings
• Residential roofing
• Prefabricated houses
• Storage facilities

Choosing the correct coating is one of the most important decisions when purchasing IBR roofing sheets.

Galvanized IBR Roof Sheeting: Reliable Corrosion Protection

Galvanized IBR roof sheeting is manufactured by coating steel with a layer of zinc. The zinc coating creates a protective barrier that prevents moisture and oxygen from directly contacting the steel surface.

The most common galvanizing process is hot-dip galvanizing, where steel sheets pass through molten zinc to form a durable protective layer.

Advantages of Galvanized IBR Roofing Sheets

1. Excellent Corrosion Resistance

Zinc provides sacrificial protection. Even if the surface gets scratched, the zinc layer continues protecting the steel underneath.

This makes galvanized IBR sheets suitable for:

• Rural buildings
• Agricultural structures
• Storage warehouses
• General construction projects

2. Cost-Effective Roofing Solution

Compared with premium coated roofing materials, galvanized sheets provide a more economical option while still offering good durability.

For large construction projects where budget control is important, galvanized IBR roofing is often the preferred choice.

3. Easy Maintenance

Galvanized roofing requires minimal maintenance compared with traditional steel roofing without coating.

With proper installation and environmental conditions, galvanized IBR sheets can provide decades of service life.

Galvanized Coating Thickness Options

The zinc coating weight directly affects corrosion resistance.

Common options include:

• Z40
• Z60
• Z80
• Z100
• Z120
• Z180
• Z275

Higher zinc coating means better protection in aggressive environments.

For example:

• Standard buildings: Z60-Z100
• Outdoor industrial projects: Z120-Z180
• Coastal or high humidity areas: Z180-Z275

Roofglory can provide customized galvanized coating levels according to project requirements and destination markets.

Color Coated IBR Roof Sheeting: Combining Protection and Appearance

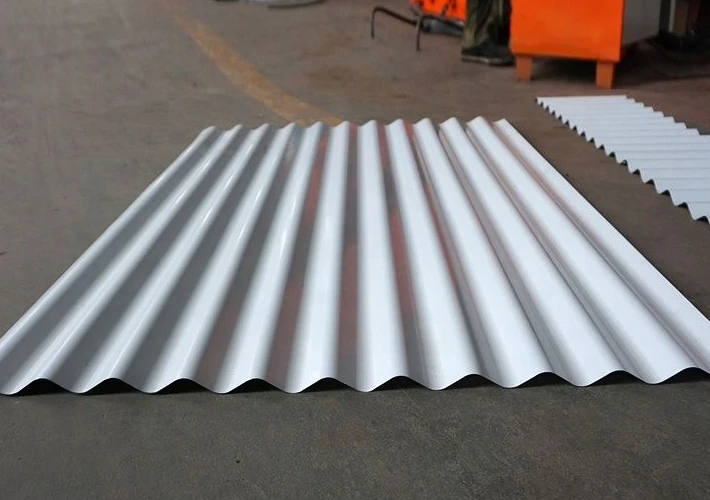

Color coated IBR roof sheeting is produced by applying a colored paint layer on galvanized or Aluzinc steel substrates.

This type of roofing is also known as:

• PPGI IBR roofing sheet
• Pre-painted galvanized roofing
• Color steel roofing sheet

The coating system usually includes:

1. Metal substrate
2. Zinc or Aluzinc coating
3. Primer layer
4. Top color coating
5. Protective finish

This multi-layer structure provides both corrosion protection and decorative performance.

Benefits of Color Coated IBR Roof Sheets

1. Attractive Appearance

Color coated roofing allows architects and builders to choose different colors to match building designs.

Popular colors include:

• Blue
• Red
• Green
• Grey
• White
• Black
• Custom RAL colors

This makes color coated IBR sheets ideal for:

• Commercial buildings
• Retail facilities
• Modern warehouses
• Residential projects

2. Strong Weather Resistance

High-quality paint coatings improve resistance against:

• UV radiation
• Rain
• Temperature changes
• Humidity
• Chemical exposure

For regions with strong sunlight, selecting the correct coating type is especially important.

Common coating materials include:

• PE (Polyester)
• SMP (Silicone Modified Polyester)
• HDP (High Durability Polyester)
• PVDF

Among these:

• PE is suitable for standard applications
• HDP provides better durability
• PVDF offers premium weather resistance

3. Lower Long-Term Maintenance Cost

Although color coated IBR roofing has a higher initial cost compared with standard galvanized sheets, the improved appearance and corrosion resistance can reduce repainting and maintenance expenses.

For commercial projects, the total lifecycle cost is often more competitive.

Aluzinc IBR Roof Sheeting: Advanced Long-Term Performance

Aluzinc IBR roof sheeting, also called Galvalume roofing, uses a coating composed mainly of:

• Aluminum
• Zinc
• Silicon

A typical coating composition is approximately:

• 55% aluminum
• 43.4% zinc
• 1.6% silicon

This combination provides superior corrosion protection compared with traditional galvanized steel.

Advantages of Aluzinc Roofing Sheets

1. Superior Corrosion Resistance

The aluminum component creates a stable protective oxide layer, while zinc provides sacrificial protection.

This combination makes Aluzinc roofing highly resistant to:

• Moisture
• Industrial environments
• Temperature changes
• Atmospheric corrosion

2. Longer Service Life

In many environments, Aluzinc roofing can last significantly longer than standard galvanized roofing.

It is especially suitable for:

• Coastal areas
• Tropical climates
• High rainfall regions
• Industrial zones

3. Better Heat Reflection

The aluminum content improves solar reflectivity, helping reduce heat absorption.

This advantage is valuable for:

• Warehouses
• Factories
• Agricultural buildings
• Tropical regions

Buildings using Aluzinc roofing may experience improved indoor temperature control.

Comparison Between Galvanized, Color Coated and Aluzinc IBR Roof Sheets

Choosing the right coating depends on project requirements, environment, budget, and expected service life.

How to Choose the Right IBR Roof Sheeting Coating

1. Local Climate Conditions

Climate has a major influence on the service life of roofing materials.

Hot and Dry Areas

For regions with strong sunlight and high temperatures, such as parts of the Middle East, Africa, and South America, roofing materials need excellent UV resistance and heat reflection performance.

Recommended options:

• Aluzinc IBR roof sheets
• Color coated IBR roof sheets with high-quality paint systems

Aluzinc coating helps reduce heat absorption, while color coatings with suitable resin systems provide better protection against fading and surface aging.

Coastal and High Humidity Areas

Buildings near oceans are exposed to salt spray, moisture, and accelerated corrosion risks.

Recommended options:

• Aluzinc IBR roof sheeting
• Heavy galvanized coating (Z180-Z275)
• PVDF or HDP color coated roofing

For coastal construction projects, selecting a higher coating grade can significantly extend the roof lifespan and reduce replacement costs.

Industrial Areas

Factories and industrial facilities may face exposure to chemicals, dust, and pollutants.

Recommended options:

• Aluzinc roofing sheets
• High-performance color coated sheets

For these environments, buyers should pay attention not only to the metal coating but also to the paint layer quality.

2. Project Budget and Expected Service Life

Budget is another important factor when choosing IBR roof sheet coatings.

Galvanized IBR Roofing

Best choice for:

• Cost-sensitive projects
• Temporary buildings
• Agricultural applications
• Standard warehouses

Advantages:

• Lower purchase cost
• Reliable protection
• Easy sourcing

Color Coated IBR Roofing

Best choice for:

• Commercial buildings
• Modern architectural projects
• Residential developments

Advantages:

• Better appearance
• More design options
• Additional weather protection

Aluzinc IBR Roofing

Best choice for:

• Long-term investment projects
• Harsh environments
• Premium construction projects

Advantages:

• Excellent corrosion resistance
• Longer service life
• Better thermal performance

IBR Roof Sheeting Coating Standards for International Buyers

When importing IBR roof sheets from China, buyers should check technical standards and coating specifications before placing orders.

Important factors include:

Steel Grade

Common steel grades include:

• DX51D
• DX52D
• S250GD
• S280GD
• S350GD

Higher-strength steel grades provide better structural performance.

Zinc Coating Weight

For galvanized IBR sheets, coating weight is usually expressed as:

• Z60
• Z80
• Z120
• Z180
• Z275

The higher the zinc coating, the stronger the corrosion resistance.

Aluzinc Coating Weight

Common Aluzinc coating grades include:

• AZ100
• AZ150
• AZ200

AZ150 is widely used for roofing applications because it provides a good balance between durability and cost.

Paint Coating Thickness

For color coated IBR roofing, coating thickness affects durability.

Typical requirements:

• Top paint: 15-25μm
• Back paint: 5-10μm

Premium systems may use thicker coatings for improved weather resistance.

Manufacturing Process of Roofglory IBR Roof Sheeting

As a professional Chinese roofing sheet supplier, Roofglory follows strict production procedures to ensure stable quality for global customers.

The manufacturing process includes:

1. Raw Material Selection

High-quality galvanized steel, Aluzinc steel, and pre-painted steel coils are selected according to customer requirements.

Materials are checked for:

• Thickness accuracy
• Coating quality
• Surface condition
• Mechanical properties

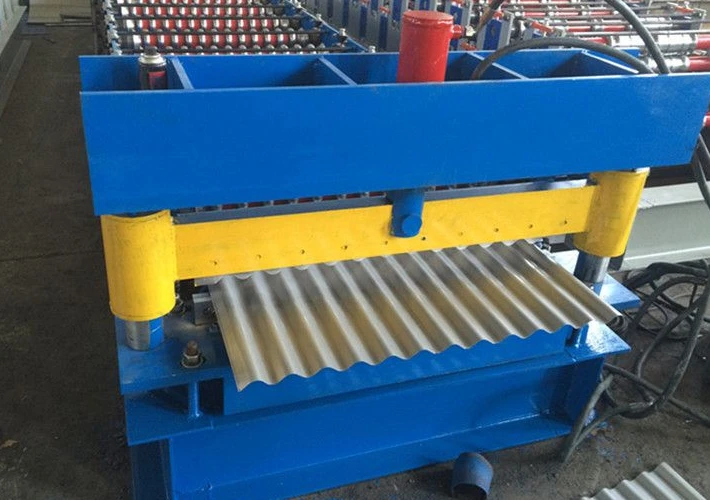

2. Roll Forming Production

The steel coil passes through precision roll forming machines to create the IBR profile.

Advantages include:

• Accurate dimensions
• Uniform rib height
• Strong structural performance

3. Quality Inspection

Each batch is inspected before shipment.

Testing includes:

• Thickness measurement
• Width inspection
• Coating inspection
• Surface quality checking
• Packing inspection

4. Export Packaging

Roofglory provides export-standard packaging suitable for international transportation.

Packaging options include:

• Waterproof wrapping
• Steel strip reinforcement
• Customized bundles
• Container loading optimization

This helps prevent damage during sea transportation.

Why Choose Roofglory as Your IBR Roof Sheeting Supplier in China?

For international distributors, wholesalers, and construction companies, choosing a reliable manufacturer is as important as choosing the right roofing material.

Roofglory provides:

Factory Direct Supply

As a China-based roofing material supplier, Roofglory offers direct factory pricing for bulk orders.

Benefits include:

• Competitive prices
• Stable production capacity
• Flexible customization
• Professional export service

Customized Roofing Solutions

Different markets have different requirements.

Roofglory supports customization of:

• Sheet thickness
• Length
• Width
• Coating type
• Color
• Packaging
• Logo marking

Wide Product Range

Besides IBR roof sheeting, Roofglory supplies various construction materials, including:

• Galvanized steel sheets
• Color coated steel sheets
• Aluzinc roofing sheets
• Corrugated roofing sheets
• Stone coated roofing tiles
• Roofing accessories

This allows buyers to source multiple roofing products from one reliable supplier.

Common Questions About IBR Roof Sheeting Coatings

Is galvanized IBR roofing better than color coated roofing?

It depends on the application.

Galvanized roofing is more economical and suitable for basic construction projects.

Color coated roofing provides better appearance and additional protection, making it more suitable for commercial and architectural projects.

Is Aluzinc roofing better than galvanized roofing?

In many environments, Aluzinc provides better corrosion resistance and longer service life due to its aluminum-zinc coating structure.

However, galvanized roofing remains a cost-effective choice for general applications.

Which IBR roofing coating is best for coastal areas?

Aluzinc IBR roof sheeting is usually recommended for coastal areas because of its excellent corrosion resistance.

Heavy galvanized coatings and premium painted systems can also provide good performance.

Can Roofglory supply customized IBR roof sheets?

Yes. Roofglory provides customized IBR roofing solutions based on project requirements, including thickness, length, coating type, and color options.

Conclusion: Selecting the Best IBR Roof Sheeting Coating for Your Project

IBR roof sheeting performance depends greatly on coating selection. Galvanized, color coated, and Aluzinc options each provide unique advantages.

• Galvanized IBR roof sheeting is an economical and reliable solution for general construction.
• Color coated IBR roof sheeting offers excellent appearance and versatile design options.
• Aluzinc IBR roof sheeting provides superior corrosion resistance and long-term durability.

For importers, distributors, and contractors, choosing the right coating can improve building performance, reduce maintenance costs, and increase customer satisfaction.

As a professional IBR roof sheeting manufacturer in China, Roofglory provides high-quality roofing solutions with factory-direct pricing, customized specifications, and reliable export support.

Contact Roofglory today for IBR roof sheeting samples, specifications, and wholesale quotations for your next roofing project.
